The Mr. Glass lines explained.

Mr. Glass groups its products into lines. Each line is aimed at a different kind of project, budget and look.

MG-350 Windows Series

Budget-friendly

Best for: Homeowners who want impact windows on a tighter budget for everyday bedroom and living-room openings in normal wind-load areas.

The MG-350 series shares one slim 2-3/16 in. aluminum frame across a single-hung (MG-350 SH), a horizontal slider (MG-350 HR) and a fixed picture window (MG-350 PW), which can also be made in arches, circles and other shapes
Impact: Every MG-350 model is impact-rated under a Florida Product Approval (FL41887 single-hung, FL41890 slider, FL41889 picture window)
Finishes: Powder-coat finishes in standard and custom colors

Full details

The MG-350 series shares one slim 2-3/16 in. aluminum frame across a single-hung (MG-350 SH), a horizontal slider (MG-350 HR) and a fixed picture window (MG-350 PW), which can also be made in arches, circles and other shapes. Mr. Glass describes it as having a slimmer sightline and a larger daylight opening. Compared with the heavier MG-200/300/400 windows, it offers one 5/16 in. laminated glass build, smaller maximum sizes and lower pressure ratings (+65/−80 psf on the single-hung, ±65 psf on the slider and picture window), so it fits standard openings rather than tall or high-wind ones.

Why it costs what it does: The lowest-cost Mr. Glass windows for the same opening: a slimmer frame, a single 5/16 in. laminated glass build, smaller sizes and lower pressure ratings.
Impact: Every MG-350 model is impact-rated under a Florida Product Approval (FL41887 single-hung, FL41890 slider, FL41889 picture window). The approval drawings note large- and small-missile resistance; there is no separate small-missile product.
Thermal: No thermal break, and the approval drawings show no insulated-glass option. NFRC-simulated U-factors are about 1.02-1.09 with laminated glass.
Finishes: Powder-coat finishes in standard and custom colors. AAMA 2604 paint is standard and AAMA 2605 is the upgrade. Under the October 1, 2025 Mr. Glass warranty (owner-occupied homes), both carry a 10-year finish warranty, but only AAMA 2605 stays covered within 2 miles of the coast or any salt water.

Series: MG-350 SH, MG-350 HR, MG-350 PW

Residential Impact Windows

Mid-range

Best for: Homes, condos and high-rise units that need taller or wider windows, higher wind-load ratings, insulated glass, casements or window walls.

This is the core of Mr. Glass's residential catalog
Impact: All are impact-rated under Florida Product Approvals
Finishes: Powder-coat finishes in standard and custom colors

Full details

This is the core of Mr. Glass's residential catalog. The MG-200 single-hung, MG-300 horizontal slider and MG-400 picture window share matching 2-7/8 in. frames and offer 7/16 in. SentryGlas and insulated-laminated glass, with ratings from about +80/−140 to ±100 psf. The MG-450 is a heavy fixed window that can be built very tall, with intermediate bars or combined with impact louvers. The MG-250 is a 6 in. deep stacked single-hung window wall for floor-to-ceiling and high-rise openings. The MG-600 is Mr. Glass's only crank-out casement and awning window. MG-150 aluminum mullions join units into larger openings.

Why it costs what it does: Costs more than the MG-350 series for the same opening because of deeper frames, thicker and insulated glass options, larger sizes and higher ratings. Within the family, the MG-250 window wall, MG-450 tall fixed window and MG-600 casement/awning cost the most.
Impact: All are impact-rated under Florida Product Approvals. The MG-200, MG-250, MG-300 and MG-450 have separate large-missile (LMI) and small-missile (SMI) approvals. The MG-400 and MG-600 are LMI approvals whose drawing notes cover large and small missile.
Thermal: No thermal break. With insulated-laminated Low-E glass, NFRC-simulated U-factors drop to about 0.56-0.78; with laminated-only glass they are about 1.01-1.14. The MG-250 has no published NFRC values.
Finishes: Powder-coat finishes in standard and custom colors. AAMA 2604 paint is standard and AAMA 2605 is the upgrade. Under the October 1, 2025 Mr. Glass warranty (owner-occupied homes), both carry a 10-year finish warranty, but only AAMA 2605 stays covered within 2 miles of the coast or any salt water.

Series: MG-200, MG-300, MG-400, MG-450, MG-250, MG-600, MG-150

Sliding, French and Entry Doors

Best for: Homeowners replacing patio sliders, French doors or a front entry door, from everyday budgets to statement pivot doors.

Sliding doors come in three levels: the slimmer MG-1500 two-track door with 7/16 in. glass, the heavy-duty MG-1000 two-track door with 9/16 in. glass and panels up to 12 ft, and the MG-1100 three-track multitrack door for very wide openings
Impact: Every door is impact-rated under a Florida Product Approval
Finishes: Powder-coat finishes in standard and custom colors

Full details

Sliding doors come in three levels: the slimmer MG-1500 two-track door with 7/16 in. glass, the heavy-duty MG-1000 two-track door with 9/16 in. glass and panels up to 12 ft, and the MG-1100 three-track multitrack door for very wide openings. Swing doors run from the MG-3000 outswing single or French door with sidelites, to the MG-3500 modern entry door with a 4-point lock and decorative panels, to the MG-4000 oversized pivot door up to 6 x 12 ft. The MG-2500T is a flush (coplanar) solid-panel door with concealed hinges, offered outswing or inswing.

Why it costs what it does: Cost varies widely within this line. The MG-1500 slider and MG-3000 French door are the lowest-cost Mr. Glass doors; the MG-1100 multitrack and the MG-4000 pivot door are the most expensive. Ask us for a side-by-side quote.
Impact: Every door is impact-rated under a Florida Product Approval. The MG-1000, MG-1100 and MG-1500 have separate LMI and SMI approvals; the MG-3000, MG-3500 and MG-4000 are LMI approvals; the MG-2500T approval covers LMI and SMI.
Thermal: Only the MG-2500T is thermally broken (glass-fiber-reinforced polyamide strips); it has no published NFRC values. The other doors are not thermally broken, with NFRC-simulated U-factors of about 0.66-0.67 with insulated glass and about 1.0-1.16 with laminated glass.
Finishes: Powder-coat finishes in standard and custom colors. AAMA 2604 paint is standard and AAMA 2605 is the upgrade. Under the October 1, 2025 Mr. Glass warranty (owner-occupied homes), both carry a 10-year finish warranty, but only AAMA 2605 stays covered within 2 miles of the coast or any salt water. The MG-2500T also offers a wood-look sublimation finish (5-year finish warranty), and the MG-3500 offers decorative solid infill designs.

Series: MG-1500, MG-1000, MG-1100, MG-3000, MG-3500, MG-4000, MG-2500T

Commercial Impact Systems

Best for: Shops, offices, condos and mid- to high-rise buildings, usually through a contractor or architect.

Mr. Glass lists these on its commercial products page
Impact: All the systems listed here are large-missile impact-rated under Florida Product Approvals
Finishes: AAMA 2604 powder coat is standard and AAMA 2605 is the upgrade

Full details

Mr. Glass lists these on its commercial products page. They include the MG-500 commercial door, the MG-5000 recess-glazed storefront that mates with it, the MG-5500 storefront/window wall with its own outswing door, the MG-6000 shop-glazed 5 in. window wall for mid- and high-rise, and the MG-2000 and MG-7000 curtain walls. Mr. Glass also makes non-impact commercial products (the MG-275 door and MG-4500 storefront) for interiors or shutter-protected openings.

Why it costs what it does: Commercial systems are engineered and quoted by project.
Impact: All the systems listed here are large-missile impact-rated under Florida Product Approvals; the MG-2000 curtain wall and MG-5500 window wall also have small-missile ratings.
Thermal: Not thermally broken.
Finishes: AAMA 2604 powder coat is standard and AAMA 2605 is the upgrade. For commercial use, the October 1, 2025 warranty gives 2604 a 5-year finish warranty and 2605 a 10-year one; only 2605 stays covered within 2 miles of salt water.

Series: MG-500, MG-5000, MG-5500, MG-6000, MG-2000, MG-7000

Mr. Glass product pictures.

Official photos from Mr. Glass. Tap any picture to see it larger.

Compare Mr. Glass by product.

Tap a product to see its cost position, a side-by-side comparison and every series. Tap it again to close it.

Mr. Glass single-hung windows

Cost position

MG-350 SHSingle-hung window
Budget-friendly
The lowest-cost Mr. Glass single-hung: a slimmer 2-3/16 in. frame, a single 5/16 in. laminated glass build, smaller maximum sizes and a lower +65/−80 psf rating, with no SMI or insulated-glass version.
MG-200Single-hung window
Mid-range
Costs more than the MG-350 SH for the same opening, even with the same 5/16 in. glass: a deeper 2-7/8 in. frame, Ultralift balances, ratings up to +80/−140 psf, sizes to 96 in. tall, an SMI version, and 7/16 in. SentryGlas and insulated-glass options. Choosing 7/16 in. or insulated glass adds more. The MG-250 window-wall single-hung costs more than either.

Relative to other Mr. Glass single-hung windows, never a price. Your written estimate gives the price for your openings.

MG-200 vs MG-350 SH: which Mr. Glass single-hung?

Both are aluminum impact single-hungs, built for different jobs. The MG-350 SH is the budget pick: a slim 2-3/16 in. frame, one 5/16 in. laminated glass build, sizes to about 53 x 76 in., and +65/−80 psf. The MG-200 has a deeper 2-7/8 in. frame and taller sizes, to 96 in. It offers 5/16 in. or 7/16 in. laminated glass and insulated glass. With 7/16 in. SentryGlas it is approved to +80/−140 psf; with 5/16 in. glass it is limited to ±80 psf and 76 in. tall. The MG-200 costs more even with the same glass, and thicker glass adds more.

Attribute	MG-200	MG-350 SH
Frame depth	2-7/8 in.	2-3/16 in.
Glass (approval drawing)	5/16 in. or 7/16 in. laminated; 11/16 or 7/8 in. insulated laminated	5/16 in. laminated only
Interlayer	5/16 in.: PVB. 7/16 in.: SentryGlas (LMI) or PVB (SMI)	PVB
Largest size	53-1/8 x 96 in. (7/16 in. glass); 76 in. tall with 5/16 in.	53-1/8 x 76 in. or 48 x 84 in.
Design pressure (approval)	+80/−140 psf (5/16 in. glass: ±80)	+65/−80 psf
Impact	LMI and SMI versions	LMI
Insulated glass	Yes	No
Thermal break	No	No
Cost position	Mid-range	Budget-friendly

Every Mr. Glass single-hung series

MG-200

Single-hung window

The heavier-duty Mr. Glass single-hung, built for tall openings and high wind loads.

Best for: Single-hung openings that are tall (up to 8 ft), exposed to higher wind loads, high-rise (SMI) jobs, or where you want insulated glass.
Cost position: Mid-range
Largest size: 53-1/8 x 96 in. frame (equal-lite single-hung, 7/16 in. SentryGlas or 7/8 in. insulated-laminated glass, LMI drawing W16-20). With 5/16 in. glass, the maximum is 76 in. tall.
Impact rating: LMI and SMI (separate Florida products 20352.1 LMI / 20352.2 SMI). The SMI drawing requires approved shutters below 30 ft above grade.

Full specifications

Frame depth: 2-7/8 in.
Glass: 5/16 in. laminated (1/8 HS + 0.090 PVB + 1/8 HS), LMI only; 7/16 in. laminated (3/16 HS + 0.090 SentryGlas + 3/16 HS), LMI; 11/16 in. insulated laminated (with the 5/16 laminate), LMI; 7/8 in. insulated laminated (with the 7/16 laminate), LMI; SMI version: 7/16 in. laminated (3/16 HS + 0.060 PVB + 3/16 tempered) or 7/8 in. insulated laminated; Low-E (e.g. Solarban 70), tints and white privacy interlayer
Design pressure: Florida FL20352-R4: +80/−140 psf (LMI and SMI). On the LMI drawing, 7/16 in. SentryGlas and its insulated version reach +80/−140 psf on most sizes (lower on some of the largest); the 5/16 in. PVB glass is limited to +80/−80 psf. The approval drawing sets the allowed pressure for each opening by size, configuration, glass, anchors and substrate.
Thermal: Not thermally broken. NFRC-simulated U-factors: about 1.05–1.12 with laminated glass and about 0.69 with insulated-laminated Low-E glass.

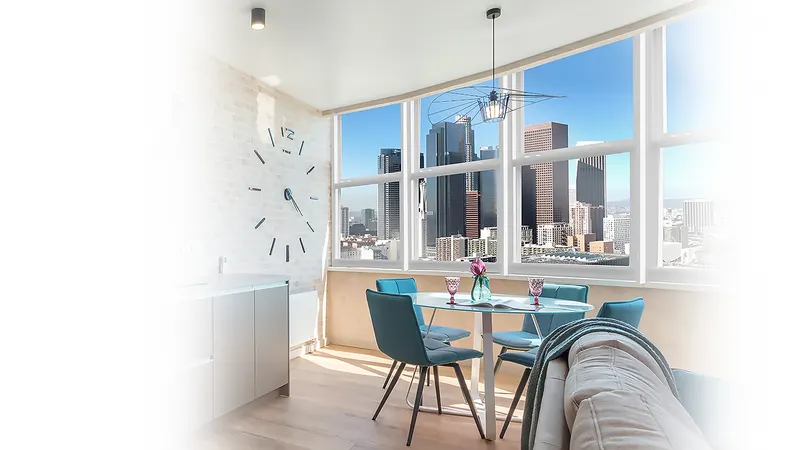

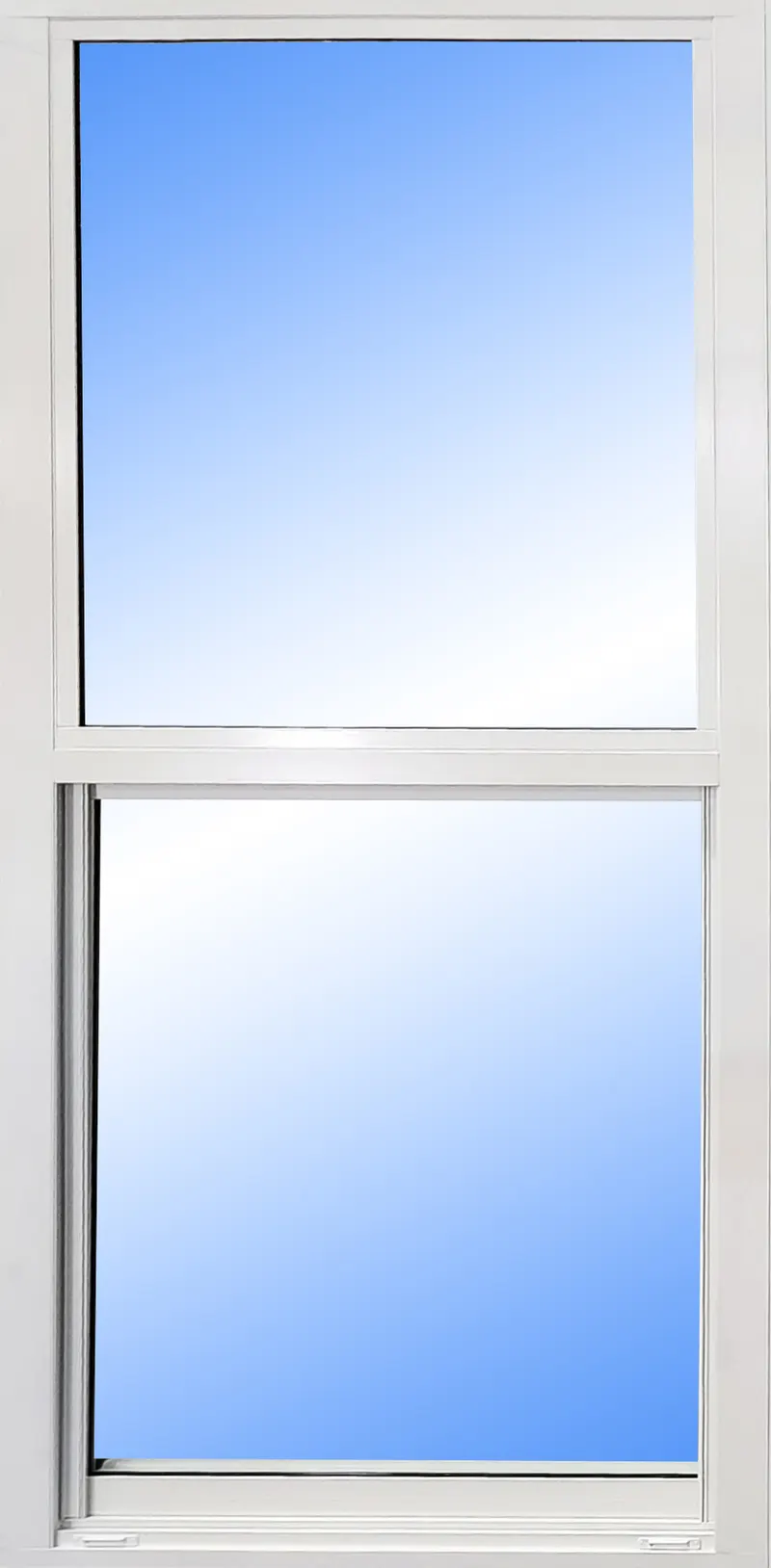

MG-350 SH

Single-hung window

Slim-frame, budget-friendly impact single-hung with 5/16 in. laminated glass.

Best for: Standard bedroom and living-area openings up to about 4-1/2 x 6-1/3 ft where local wind loads are within +65/−80 psf, and retrofits where a slim frame helps.
Cost position: Budget-friendly
Largest size: 53-1/8 x 76 in. frame, or up to 48 x 84 in., all at +65/−80 psf (drawing 23-02F).
Impact rating: LMI (Florida product 41887.1). The drawing notes rate it for large and small missile; there is no separate SMI product.

Full specifications

Frame depth: 2-3/16 in.
Glass: 5/16 in. laminated only (1/8 HS + 0.090 Trosifol PVB + 1/8 HS) on approval drawing 23-02F; Clear, gray, bronze, Solex green or Solargray tint; Low-E (Solarban 70); translucent white interlayer
Design pressure: Florida FL41887-R2: +65/−80 psf, for every listed size on drawing 23-02F. The approval drawing sets the allowed pressure for each opening by size, configuration, glass, anchors and substrate.
Thermal: Not thermally broken. No insulated glass option on the approval drawing. NFRC-simulated U-factor about 1.05–1.07.

All single-hung windows we install Mr. Glass approvals

Mr. Glass sliding windows

Cost position

MG-350 HRHorizontal roller (slider) window
Budget-friendly
Costs less than the MG-300 for the same opening: a slimmer 2-3/16 in. frame, one 5/16 in. glass build, smaller sizes and a ±65 psf rating.
MG-300Horizontal roller (slider) window
Mid-range
Costs more than the MG-350 HR for the same opening: a deeper 2-7/8 in. frame, much larger sizes, ratings up to +90/−140 psf, an SMI version, and 7/16 in., SentryGlas and insulated glass choices. Thicker glass adds more.

Relative to other Mr. Glass sliding windows, never a price. Your written estimate gives the price for your openings.

MG-300 vs MG-350 HR: which Mr. Glass slider?

The MG-350 HR is the value slider: a slim 2-3/16 in. frame with 5/16 in. laminated glass, rated ±65 psf, in XO/OX up to about 84 x 63 in. or XOX up to about 112 x 63 in. The MG-300 is the heavy-duty slider. It has a 2-7/8 in. frame and oversized units up to 127-5/8 x 74 in. Glass choices are 5/16 in. or 7/16 in. laminated, 7/16 in. SentryGlas, and insulated laminated, plus an SMI version. With SentryGlas it is approved to +90/−140 psf; PVB glass is limited to ±80 psf. The MG-300 costs more for the same opening.

Attribute	MG-300	MG-350 HR
Frame depth	2-7/8 in.	2-3/16 in.
Glass (approval drawing)	5/16 or 7/16 in. laminated (PVB), 7/16 in. SentryGlas, 11/16 or 7/8 in. insulated laminated	5/16 in. laminated only
Largest size	127-5/8 x 74 in. (XOX)	83-7/8 x 63 in. (XO/OX); 111-5/8 x 63 in. (XOX)
Design pressure (approval)	+90/−140 psf (PVB glass ±80)	±65 psf
Impact	LMI and SMI versions	LMI
Insulated glass	Yes	No
Thermal break	No	No
Cost position	Mid-range	Budget-friendly

Every Mr. Glass sliding window series

MG-300

Horizontal roller (slider) window

The heavy-duty Mr. Glass horizontal slider, with oversized XOX units up to about 10-1/2 ft wide.

Best for: Wide openings, high wind-load areas, XOX three-panel sliders, and homes that want insulated or SentryGlas glass in a slider.
Cost position: Mid-range
Largest size: 127-5/8 x 74 in. XOX (tested unit, LMI drawing W16-26). XO/OX sizes go to 96 in. wide.
Impact rating: LMI and SMI (separate Florida products 20359.1 LMI / 20359.2 SMI)

Full specifications

Frame depth: 2-7/8 in.
Glass: 5/16 in. laminated (1/8 HS + 0.090 PVB + 1/8 HS); 7/16 in. laminated (3/16 HS + 0.090 PVB + 3/16 HS); 7/16 in. laminated with SentryGlas (3/16 HS + 0.090 SentryGlas + 3/16 HS); 11/16 in. and 7/8 in. insulated laminated; Low-E, tints, privacy interlayer
Design pressure: Florida FL20359-R5: +90/−140 psf. On the LMI drawing, the 5/16 in. and 7/16 in. PVB glass is limited to +80/−80 psf; only the 7/16 in. SentryGlas glass (and its insulated version) reaches +90/−140 psf, and lower on large sizes. The approval drawing sets the allowed pressure for each opening by size, configuration, glass, anchors and substrate.
Thermal: Not thermally broken. NFRC-simulated U-factors about 0.69 (insulated-laminated Low-E) to 1.14 (laminated).

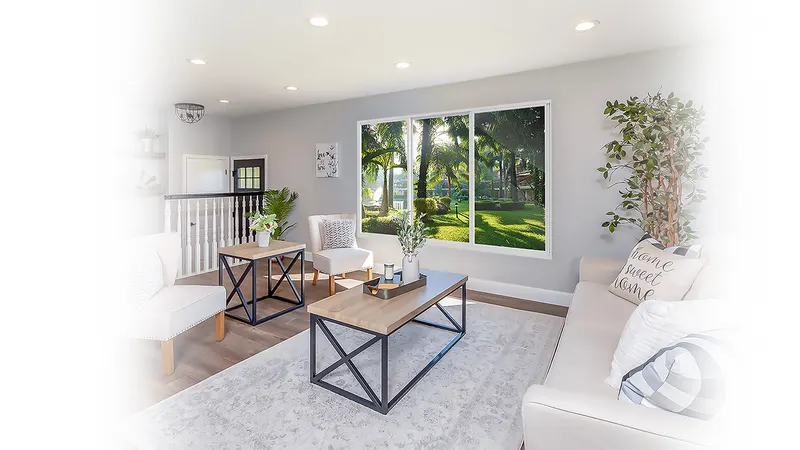

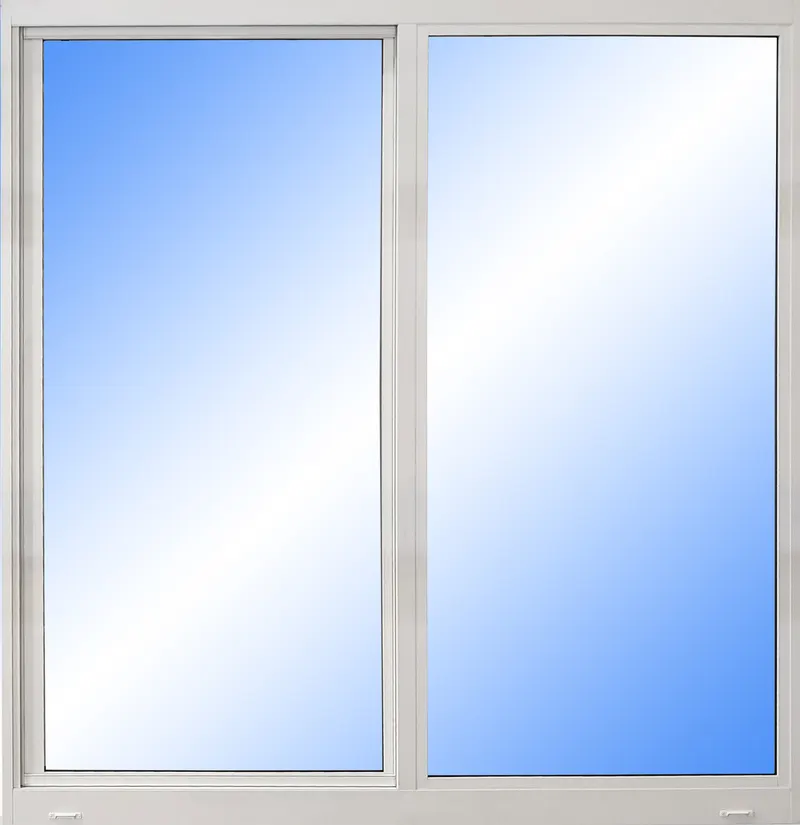

MG-350 HR

Horizontal roller (slider) window

Slim-frame, budget-friendly impact slider in XO, OX and XOX layouts.

Best for: Everyday slider openings up to about 7 x 5-1/4 ft (XO) or 9-1/4 x 5-1/4 ft (XOX) where wind loads are within ±65 psf.
Cost position: Budget-friendly
Largest size: XO/OX 83-7/8 x 63 in.; XOX 111-5/8 x 63 in. (tested units, drawing 23-01F).
Impact rating: LMI (Florida product 41890.1). The drawing notes rate it for large and small missile.

Full specifications

Frame depth: 2-3/16 in.
Glass: 5/16 in. laminated only (1/8 HS + 0.090 Trosifol PVB + 1/8 HS) on approval drawing 23-01F; Tints, Low-E (Solarban 70), translucent interlayer
Design pressure: Florida FL41890-R2: +65/−65 psf throughout the drawing schedule. The approval drawing sets the allowed pressure for each opening by size, configuration, glass, anchors and substrate.
Thermal: Not thermally broken. NFRC-simulated U-factor about 1.07–1.09.

All sliding windows we install Mr. Glass approvals

Mr. Glass picture windows

Cost position

MG-350 PWFixed (picture) window
Budget-friendly
The lowest-cost Mr. Glass fixed window for a comparable rectangle: a slim 2-3/16 in. frame, one 5/16 in. glass build and a ±65 psf rating. Shaped units cost more than rectangles.
MG-400Fixed (picture) window
Mid-range
Costs more than the MG-350 PW for a comparable rectangle: a 2-7/8 in. frame, 7/16 in. glass as the minimum, SentryGlas and insulated options, and ratings up to ±100 psf.
MG-450Fixed (picture) window / louver
Premium
The premium Mr. Glass fixed window for a comparable rectangle: thicker 7/16 and 9/16 in. glass, intermediate bars, much taller sizes and higher pressure ratings.

Relative to other Mr. Glass picture windows, never a price. Your written estimate gives the price for your openings.

MG-350 PW vs MG-400 vs MG-450: which Mr. Glass fixed window?

All three are fixed picture windows and can be made in shapes. The MG-350 PW is the value option: a slim 2-3/16 in. frame, 5/16 in. laminated glass and ±65 psf, in sizes such as 48 x 84 or 24 x 168 in. The MG-400 has a 2-7/8 in. frame that matches the MG-200 and MG-300. It uses 7/16 in. glass (PVB or SentryGlas) or insulated glass and is rated up to ±100 psf with SentryGlas. The MG-450 is the heavy option: 7/16 or 9/16 in. laminated or 13/16 in. insulated glass, intermediate bars, sizes up to 48 x 180 in., +100/−130 psf, and a separately approved impact louver (±80 psf).

Attribute	MG-350 PW	MG-400	MG-450
Frame depth	2-3/16 in.	2-7/8 in.	Not published
Glass (approval drawing)	5/16 in. laminated only	7/16 in. laminated (PVB or SentryGlas); 13/16 in. insulated laminated	7/16 in. laminated (PVB); 9/16 in. SentryGlas; 13/16 in. insulated laminated
Largest sizes	48 x 84, 36 x 108, 24 x 168 in.	53-1/8 x 76, 48 x 84, 42 x 96 or 36 x 108 in. (per approval)	48 x 180 in. fixed; louver modules to 168 in. tall
Design pressure (approval)	±65 psf	±100 psf (PVB glass ±65)	+100/−130 psf (louver ±80, separate approval)
Impact	LMI	LMI	LMI and SMI versions
Matches	MG-350 SH and HR	MG-200 and MG-300	MG-3000 doors (louvers)
Cost position	Budget-friendly	Mid-range	Premium

Every Mr. Glass picture window series

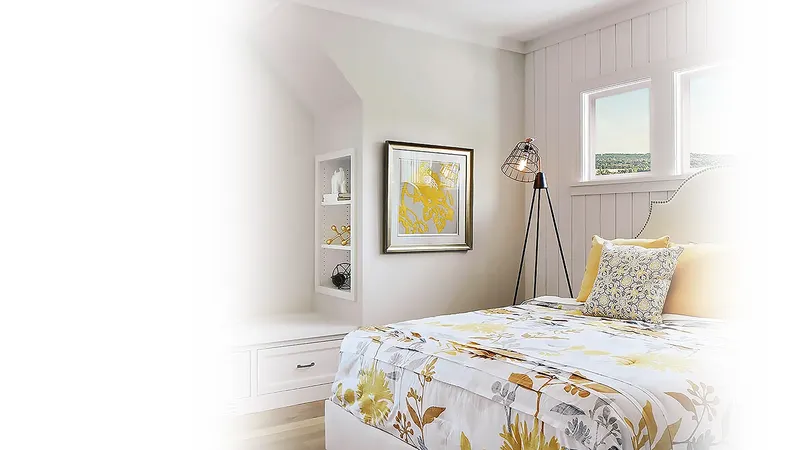

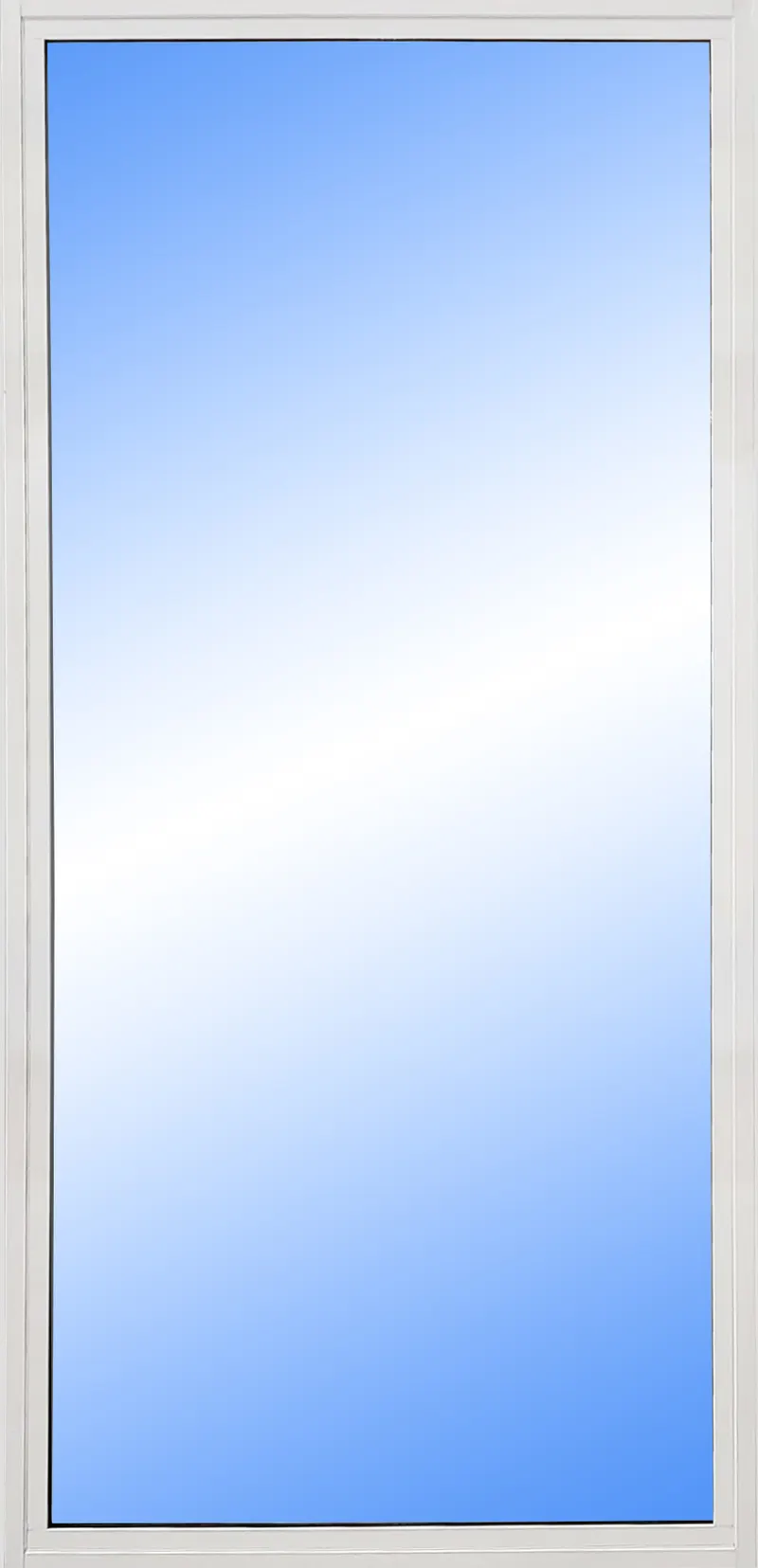

MG-350 PW

Fixed (picture) window

Slim-frame, budget-friendly fixed picture window, including shapes.

Best for: Picture windows, transoms and shaped windows (arches, circles, ovals) next to MG-350 single-hungs and sliders, at ±65 psf or less.
Cost position: Budget-friendly
Largest size: 48 x 84 in., 36 x 108 in. or 24 x 168 in. (drawing 23-03F). Some large sizes are rated below 65 psf.
Impact rating: LMI (Florida product 41889.1). The drawing notes rate it for large and small missile.

Full specifications

Frame depth: 2-3/16 in.
Glass: 5/16 in. laminated only (1/8 HS + 0.090 Trosifol PVB + 1/8 HS) on approval drawing 23-03F; Tints, Low-E (Solarban 70), translucent interlayer
Design pressure: Florida FL41889-R2: +65/−65 psf; some larger sizes on the drawing are rated as low as ±52 psf. The approval drawing sets the allowed pressure for each opening by size, configuration, glass, anchors and substrate.
Thermal: Not thermally broken. NFRC-simulated U-factor about 1.02–1.04.

MG-400

Fixed (picture) window

Fixed picture window that matches the MG-200 and MG-300, rated up to ±100 psf.

Best for: Picture windows and shapes next to MG-200/MG-300 units, higher wind-load sites, or where insulated glass is wanted.
Cost position: Mid-range
Largest size: 53-1/8 x 76, 48 x 84, 42 x 96 or 36 x 108 in., either orientation (drawing 21-02F).
Impact rating: LMI (Florida product 37319.1). The drawing notes rate it for large and small missile.

Full specifications

Frame depth: 2-7/8 in.
Glass: 7/16 in. laminated (3/16 HS + 0.090 PVB + 3/16 HS); 7/16 in. laminated with SentryGlas (3/16 HS + 0.090 SentryGlas + 3/16 HS); 13/16 in. insulated laminated (PVB or SentryGlas); Low-E available
Design pressure: Florida FL37319-R2: +100/−100 psf. On drawing 21-02F, PVB glass is ±65 psf; SentryGlas glass is ±100 psf on most sizes (about ±89–95 psf on some large ones). The approval drawing sets the allowed pressure for each opening by size, configuration, glass, anchors and substrate.
Thermal: Not thermally broken. NFRC-simulated U-factor about 0.56 (insulated-laminated Low-E) to 1.03.

MG-450

Fixed (picture) window / louver

Heavy fixed window that can be built tall, with intermediate bars, or combined with impact louvers.

Best for: Very tall fixed glass, multi-lite fixed walls, and openings that combine glass with ventilating impact louvers.
Cost position: Premium
Largest size: Fixed windows up to 48 x 180 in.; louver modules up to 168 in. tall. Drawings 21-76F/22-01F (fixed) and 21-64F (louver) set the approved sizes.
Impact rating: LMI and SMI (separate Florida products 40676.1 LMI / 40676.2 SMI)

Full specifications

Frame depth: Not published
Glass: 7/16 in. laminated (3/16 HS + 0.090 PVB + 3/16 HS); 9/16 in. laminated with SentryGlas (1/4 HS + 0.090 SentryGlas + 1/4 HS); 13/16 in. insulated laminated (type Ai on drawing 21-76F)
Design pressure: Florida FL40676: +100/−130 psf (LMI and SMI). The louver is a separate approval, FL39859-R1: +80/−80 psf (LMI). The drawing limits loads by silicone type and window area. The approval drawing sets the allowed pressure for each opening by size, configuration, glass, anchors and substrate.
Thermal: Not thermally broken. NFRC-simulated U-factor about 0.63 (insulated-laminated) to 1.01.

All picture windows we install Mr. Glass approvals

Mr. Glass sliding glass doors

Cost position

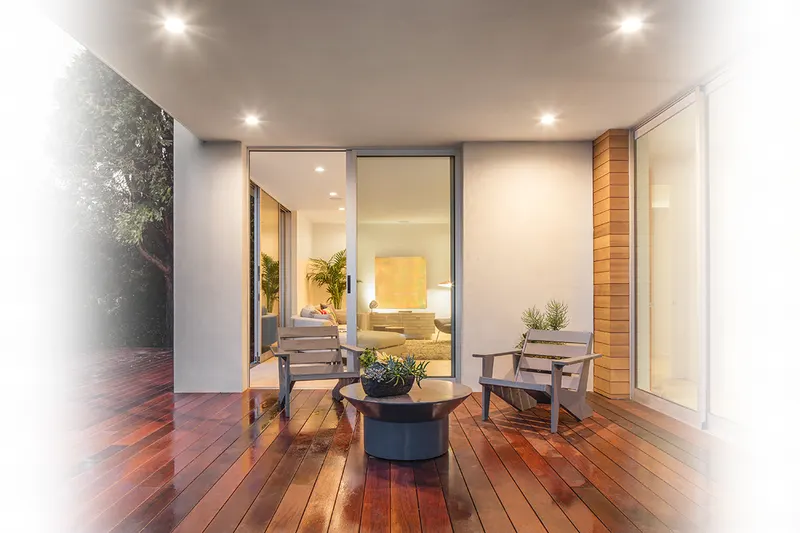

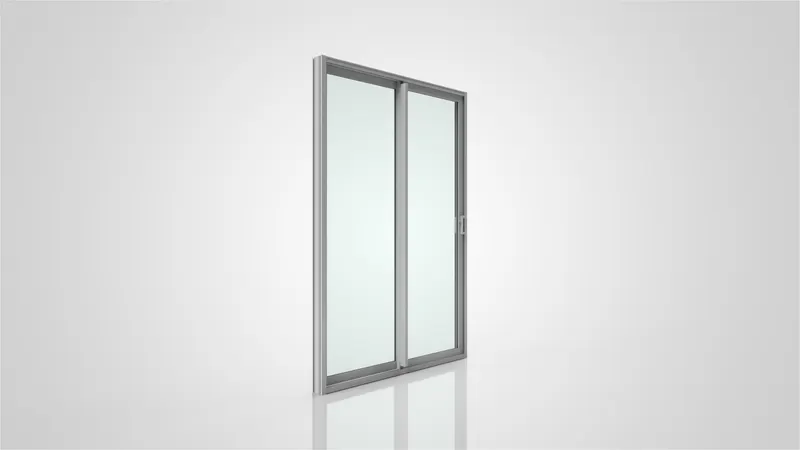

MG-1500Sliding glass door (2-track)
Budget-friendly
The lowest-cost Mr. Glass sliding door: 7/16 in. glass, lower ratings (+65/−80 psf), panels to 48 x 108 in., slim 1-3/8 in. interlock and unanchored jambs.

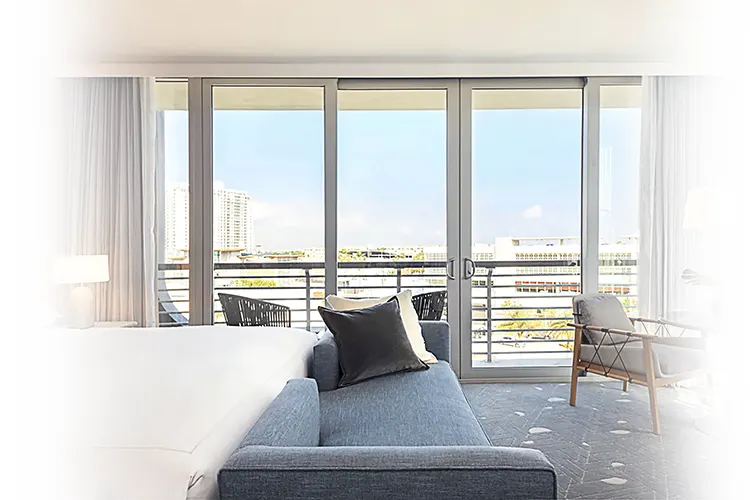

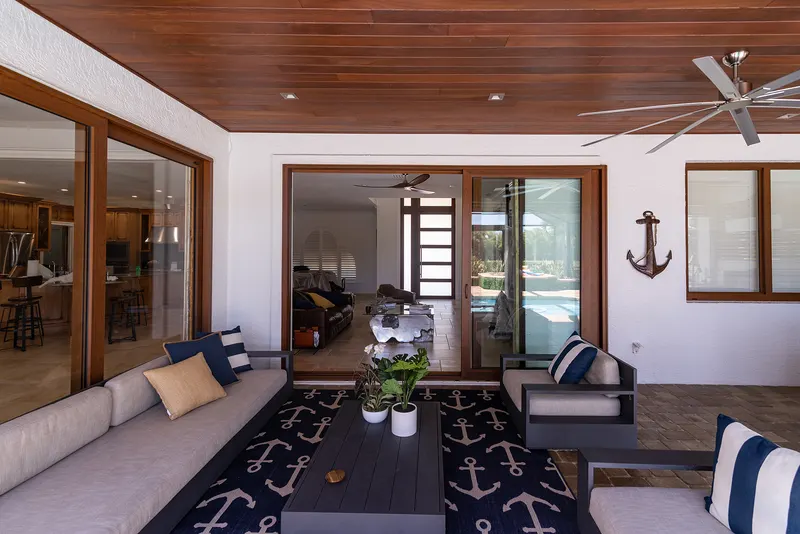

MG-1000Sliding glass door (2-track)
Mid-range
Costs more than the MG-1500 for the same opening: thicker 9/16 in. glass (or 1-3/16 in. insulated), far higher ratings (+120/−140 psf), much bigger panels and an SMI version. Pocket versions are available, but the pocket portions are not part of the approval.

Relative to other Mr. Glass sliding glass doors, never a price. Your written estimate gives the price for your openings.

MG-1500 vs MG-1000 vs MG-1100: which Mr. Glass sliding door?

The MG-1500 is the value slider. It has a 5 in. frame, 7/16 in. laminated glass, panels up to 48 x 108 in., and +65/−80 psf (LMI). The MG-1000 is the heavy-duty two-track door. It uses 9/16 in. laminated or 1-3/16 in. insulated laminated glass, takes panels up to 48 x 144 or 72 x 96 in., and is approved to +120/−140 psf. The MG-1100 adds a third track for up to six panels of 60 x 120 in., with the same glass choices and a +80/−100 psf rating. Cost rises in that order: thicker glass, bigger panels, more tracks and higher pressure.

Attribute	MG-1500	MG-1000	MG-1100
Tracks / panels	2 tracks, up to 4 panels	2 tracks, up to 4 panels (pocket portions not part of the approval)	3 tracks, up to 6 panels; pockets
Frame depth	5 in.	Not published	Not published
Glass	7/16 in. laminated only	9/16 in. laminated; 1-3/16 in. insulated laminated	9/16 in. laminated; 1-3/16 in. insulated laminated
Max panel (drawings set approved sizes)	48 x 108 in.	48 x 144 or 72 x 96 in.	60 x 120 in.
Design pressure (approval)	LMI +65/−80; SMI +60/−70 psf	+120/−140 psf	+80/−100 psf
Impact	LMI and SMI	LMI and SMI	LMI and SMI
Screen	Runs outside	Not published	Inside (option)
Cost position	Budget-friendly	Mid-range	Premium

Every Mr. Glass sliding glass door series

MG-1000

Sliding glass door (2-track)

Heavy-duty two-track sliding door with 9/16 in. glass and very high pressure ratings.

Best for: Large patio openings, tall doors (up to 12 ft panels), high-rise and high-wind sites.
Cost position: Mid-range
Largest size: Panels up to 48 x 144 in. or 72 x 96 in. (one or the other, and not at the top pressure) in XO, OX, OXO, XOX and OXXO layouts. Drawing W15-83 sets the approved panel width and height by glass and pressure. Pocket portions are not part of the approval.
Impact rating: LMI and SMI (separate Florida products 19092.1 LMI / 19092.2 SMI)

Full specifications

Frame depth: Not published
Glass: 9/16 in. laminated (SentryGlas, PVB or Saflex interlayer types on drawing W15-83); 1-3/16 in. insulated laminated; Low-E available
Design pressure: Florida FL19092-R6: +120/−140 psf. Where water resistance is required, the drawings limit two-panel XX doors to +70 psf without a sill riser, +80 psf with a 3-5/8 in. riser and +120 psf with a 4-5/8 in. riser. The approval drawing sets the allowed pressure for each opening by size, configuration, glass, anchors and substrate.
Thermal: Not thermally broken. NFRC-simulated U-factor about 0.67 (insulated-laminated Low-E) to 1.10 (laminated); values shared with MG-1100.

MG-1500

Sliding glass door (2-track)

Slimmer, budget-friendly two-track sliding door with 7/16 in. glass.

Best for: Everyday patio doors up to 9 ft tall in neighborhoods where wind loads are within +65/−80 psf.
Cost position: Budget-friendly
Largest size: Panels up to 48 x 108 in. on two tracks, up to four panels. Drawing 21-16F sets the approved panel sizes by glass and pressure.
Impact rating: LMI and SMI (separate Florida products 38057.1 LMI / 38057.2 SMI)

Full specifications

Frame depth: 5 in.
Glass: 7/16 in. laminated only (3/16 HS + 0.090 PVB or SentryGlas + 3/16 HS) on drawing 21-16F; Tints and Low-E (Solarban 70XL)
Design pressure: Florida FL38057-R4: LMI +65/−80 psf; SMI +60/−70 psf. Some sizes need heavy-duty interlocks to reach the top rating. The approval drawing sets the allowed pressure for each opening by size, configuration, glass, anchors and substrate.
Thermal: Not thermally broken. NFRC-simulated U-factor about 1.14–1.16 (no insulated option).

All sliding glass doors we install Mr. Glass approvals

Mr. Glass multitrack sliding doors

Cost position

MG-1100Multitrack sliding glass door (3-track)
Premium
The premium Mr. Glass sliding door: three tracks and more panels, 9/16 in. glass, 60 x 120 in. panels and an inside-screen option.

Relative to other Mr. Glass multitrack sliding doors, never a price. Your written estimate gives the price for your openings.

MG-1500 vs MG-1000 vs MG-1100: which Mr. Glass sliding door?

Attribute	MG-1500	MG-1000	MG-1100
Tracks / panels	2 tracks, up to 4 panels	2 tracks, up to 4 panels (pocket portions not part of the approval)	3 tracks, up to 6 panels; pockets
Frame depth	5 in.	Not published	Not published
Glass	7/16 in. laminated only	9/16 in. laminated; 1-3/16 in. insulated laminated	9/16 in. laminated; 1-3/16 in. insulated laminated
Max panel (drawings set approved sizes)	48 x 108 in.	48 x 144 or 72 x 96 in.	60 x 120 in.
Design pressure (approval)	LMI +65/−80; SMI +60/−70 psf	+120/−140 psf	+80/−100 psf
Impact	LMI and SMI	LMI and SMI	LMI and SMI
Screen	Runs outside	Not published	Inside (option)
Cost position	Budget-friendly	Mid-range	Premium

Every Mr. Glass multitrack door series

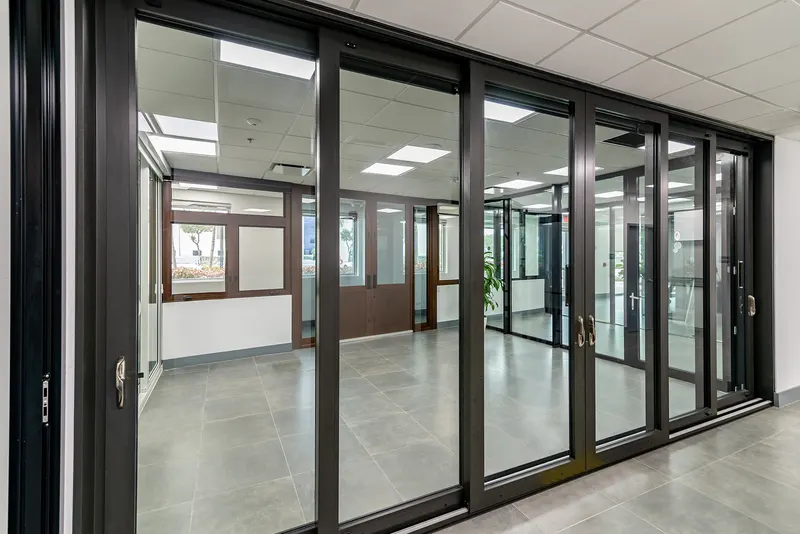

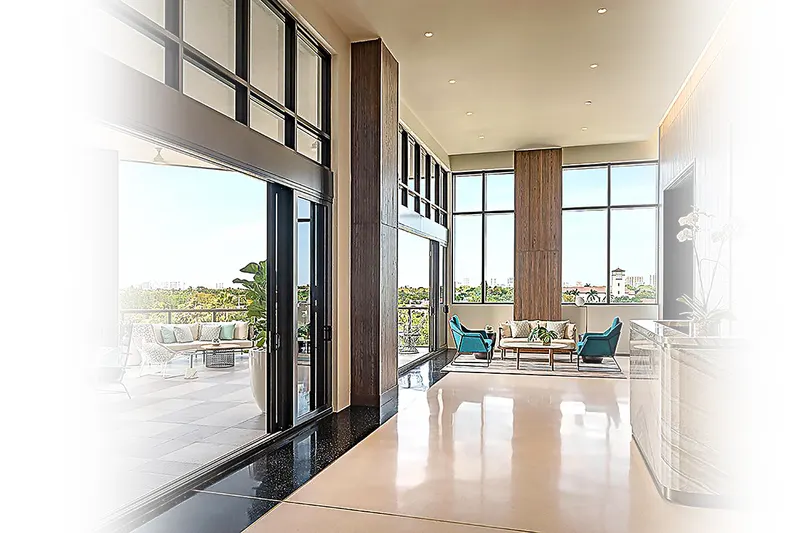

MG-1100

Multitrack sliding glass door (3-track)

Three-track multitrack door for wide openings, up to six panels.

Best for: Very wide openings where you want more of the opening clear: three tracks let more panels stack.
Cost position: Premium
Largest size: Panels up to 60 x 120 in., up to 6 panels on 3 tracks; pockets available. Drawing 18-06F sets the approved panel sizes by glass and pressure.
Impact rating: LMI and SMI (separate Florida products 25959.1 LMI / 25959.2 SMI)

Full specifications

Frame depth: Not published
Glass: 9/16 in. laminated (SentryGlas or PVB types on drawing 18-06F); 1-3/16 in. insulated laminated; Low-E available
Design pressure: Florida FL25959-R6: +80/−100 psf. Where water resistance is required, the drawing caps positive load at +76.7 psf with the standard sill; the manuals require a 1 in. sill raiser above +76 psf. The approval drawing sets the allowed pressure for each opening by size, configuration, glass, anchors and substrate.
Thermal: Not thermally broken. NFRC-simulated U-factor about 0.67–1.10 (values shared with MG-1000).

All multitrack sliding doors we install Mr. Glass approvals

Mr. Glass entry and French doors

Cost position

MG-3000Outswing hinged (French) door
Budget-friendly
The lowest-cost Mr. Glass swing door: standard hardware preparation (3-point or smart lock), 7/16 in. glass and a ±80 psf rating.
MG-3500Outswing entry door
Mid-range
Costs well above the MG-3000 for a similar door size: a 4-point multi-point lock (latch, deadbolt and shoot bolts at head and sill) with a 16 mm faceplate, smart-lock options, decorative solid infill panels and stainless hardware.

Relative to other Mr. Glass entry and French doors, never a price. Your written estimate gives the price for your openings.

MG-3000 vs MG-3500 vs MG-4000 vs MG-2500T: which Mr. Glass door?

The MG-3000 is the value outswing door. It comes as a single, French pair or with sidelites, in 7/16 in. or 1 in. insulated laminated glass or a solid panel, rated ±80 psf. The MG-3500 is the designer entry door, with a 4-point lock, smart-lock options and decorative solid panels. It has the same ±80 psf table and size limits as the MG-3000 (single door up to 48 x 120 in.) and costs well above it. The MG-4000 is an oversized pivot door up to 72 x 144 in., rated +50/−55 psf standard, and the most expensive. The MG-2500T is thermally broken with concealed hinges and opens in or out (±70 psf). It is approved as a solid insulated panel door with no glass. Ask us for a side-by-side quote.

Attribute	MG-3000	MG-3500	MG-4000	MG-2500T
Door type	Outswing hinged; X, XX, sidelites	Outswing entry; X, XX	Pivot	Coplanar hinged, outswing or inswing
Max size	X 48 x 120 in.; XX 80-3/8 x 120 in. (per approval)	X 48 x 120 in.; XX 80-3/8 x 120 in. (per approval)	72 x 144 in. (GL-1 glass or infill); 60 x 120 in. with GL-2	60 x 120 in. frame
Glass / panel	7/16 in. laminated; 1 in. insulated laminated; 7/8 in. solid panel	7/16 in. laminated HS; 1 in. insulated laminated; 7/8 in. solid panel (per approval)	9/16 in. laminated (SGP or Saflex HP); solid infill	Solid insulated panel only (no glass in approval)
Design pressure (approval)	±80 psf	±80 psf	+50/−55 psf (±70 with GL-2 glass, smaller)	±70 psf
Locking	3-point or smart-lock prep; flush bolts	4-point multi-point (latch, deadbolt, head and sill shoot bolts); Siegenia smart lock option	Multi-point Siegenia; smart lock	Multi-point (CISA mechanical or KFV electric)
Thermal break	No	No	No	Yes (polyamide)
Water resistance	Approved where water resistance is required	Approved where water resistance is required	Not approved where water resistance is required	Water resistance up to +55 psf
Cost position	Budget-friendly	Mid-range	Premium	Ask us

Every Mr. Glass entry & french door series

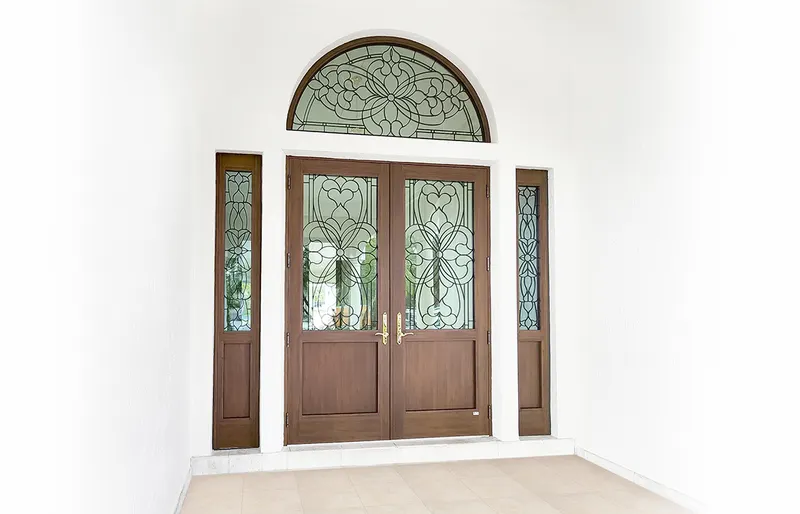

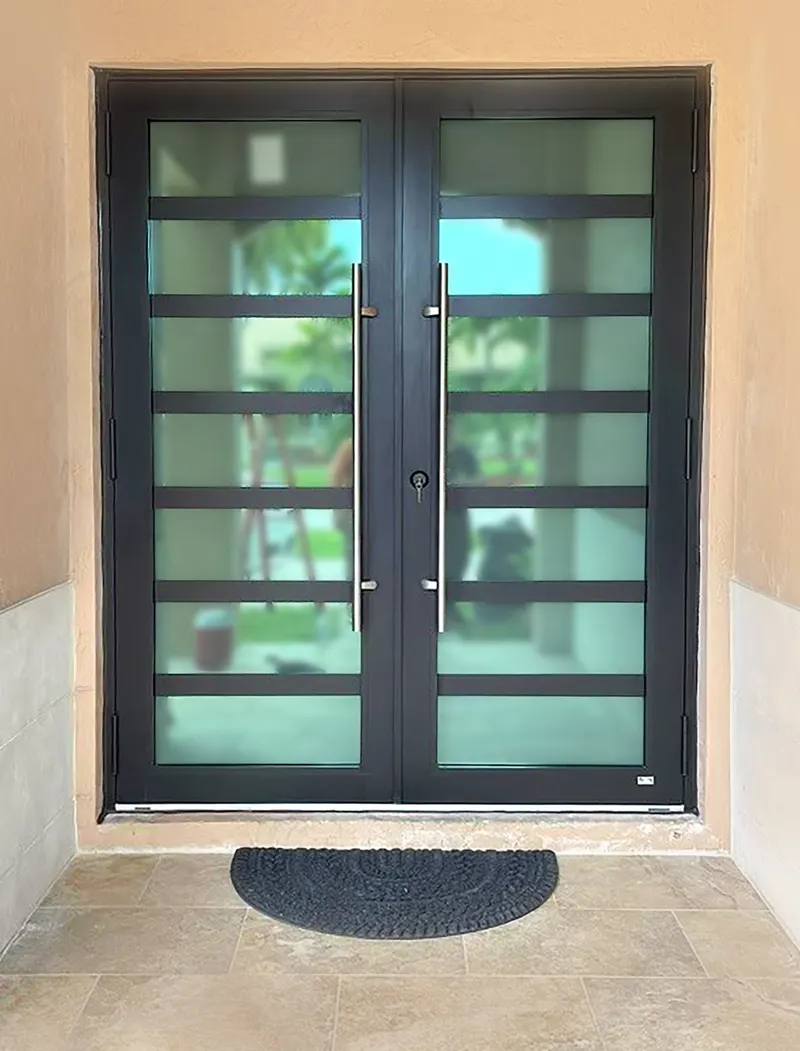

MG-3000

Outswing hinged (French) door

Outswing single or French doors, with matching sidelites for wider entries.

Best for: French doors to patios and pools, and glass entry doors with sidelites, on a budget.
Cost position: Budget-friendly
Largest size: Single X up to 48 x 120 in.; double XX up to 80-3/8 x 120 in. frame (drawing 18-36F). Some glass types do not go to 120 in. tall. Sidelite combinations follow the drawing's separate sidelite and mullion schedules; the lowest rating governs the whole assembly.
Impact rating: LMI (Florida product 26942.1). The drawing notes rate it for large and small missile.

Full specifications

Frame depth: Not published
Glass: 7/16 in. laminated (3/16 HS with 0.090 PVB, SentryGlas, or Saflex/Saflex HP interlayer); 1 in. insulated laminated; 7/8 in. glued aluminum-clad solid panel; Low-E, privacy and tinted lites; intermediate rails
Design pressure: Florida FL26942-R6: ±80 psf. On drawing 18-36F, PVB glass is ±80 psf on smaller sizes; SentryGlas +65/−70; Saflex composite ±60; taller doors lose some glass options. The approval drawing sets the allowed pressure for each opening by size, configuration, glass, anchors and substrate.
Thermal: Not thermally broken. NFRC-simulated U-factor about 0.66 (insulated) to 1.02.

MG-3500

Outswing entry door

Modern residential entry door with a 4-point lock and decorative solid or glass panels.

Best for: Front entry doors where design, security and smart-lock options matter.
Cost position: Mid-range
Largest size: Single X up to 48 x 120 in.; double XX up to 80-3/8 x 120 in. frame (drawing 23-29F). Some glass types do not go to 120 in. tall.
Impact rating: LMI (Florida product 26942.2). The drawing notes rate it for large and small missile.

Full specifications

Frame depth: Not published
Glass: 7/16 in. laminated heat-strengthened (3/16 HS with 0.090 PVB, SentryGlas, or Saflex/Saflex HP interlayer; glass types A, B and C on drawing 23-29F); 1 in. insulated laminated (type Ai: the 7/16 in. laminate + 3/8 in. air space + 3/16 in. tempered); 7/8 in. glued aluminum-clad solid panel; Low-E available
Design pressure: Florida FL26942-R6: ±80 psf, with the same X/XX capacity table as the MG-3000. The approval drawing sets the allowed pressure for each opening by size, configuration, glass, anchors and substrate.
Thermal: Not thermally broken.

All entry and French doors we install Mr. Glass approvals

Mr. Glass pivot doors

Cost position

MG-4000Pivot entry door
Premium
By far the most expensive Mr. Glass door: oversized panel, bottom-rail hydraulic pivot, multi-point Siegenia locking, 9/16 in. SGP glass and very heavy leaves.

Relative to other Mr. Glass pivot doors, never a price. Your written estimate gives the price for your openings.

MG-3000 vs MG-3500 vs MG-4000 vs MG-2500T: which Mr. Glass door?

Attribute	MG-3000	MG-3500	MG-4000	MG-2500T
Door type	Outswing hinged; X, XX, sidelites	Outswing entry; X, XX	Pivot	Coplanar hinged, outswing or inswing
Max size	X 48 x 120 in.; XX 80-3/8 x 120 in. (per approval)	X 48 x 120 in.; XX 80-3/8 x 120 in. (per approval)	72 x 144 in. (GL-1 glass or infill); 60 x 120 in. with GL-2	60 x 120 in. frame
Glass / panel	7/16 in. laminated; 1 in. insulated laminated; 7/8 in. solid panel	7/16 in. laminated HS; 1 in. insulated laminated; 7/8 in. solid panel (per approval)	9/16 in. laminated (SGP or Saflex HP); solid infill	Solid insulated panel only (no glass in approval)
Design pressure (approval)	±80 psf	±80 psf	+50/−55 psf (±70 with GL-2 glass, smaller)	±70 psf
Locking	3-point or smart-lock prep; flush bolts	4-point multi-point (latch, deadbolt, head and sill shoot bolts); Siegenia smart lock option	Multi-point Siegenia; smart lock	Multi-point (CISA mechanical or KFV electric)
Thermal break	No	No	No	Yes (polyamide)
Water resistance	Approved where water resistance is required	Approved where water resistance is required	Not approved where water resistance is required	Water resistance up to +55 psf
Cost position	Budget-friendly	Mid-range	Premium	Ask us

Every Mr. Glass pivot door series

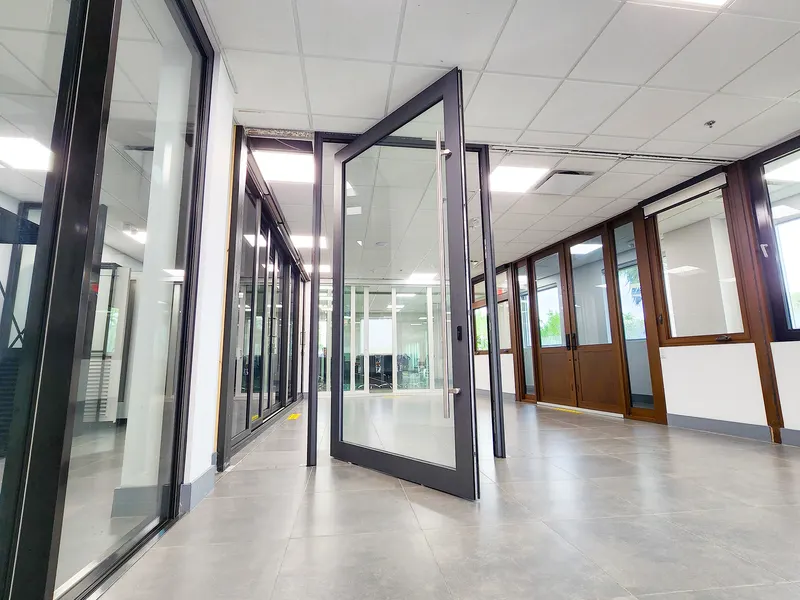

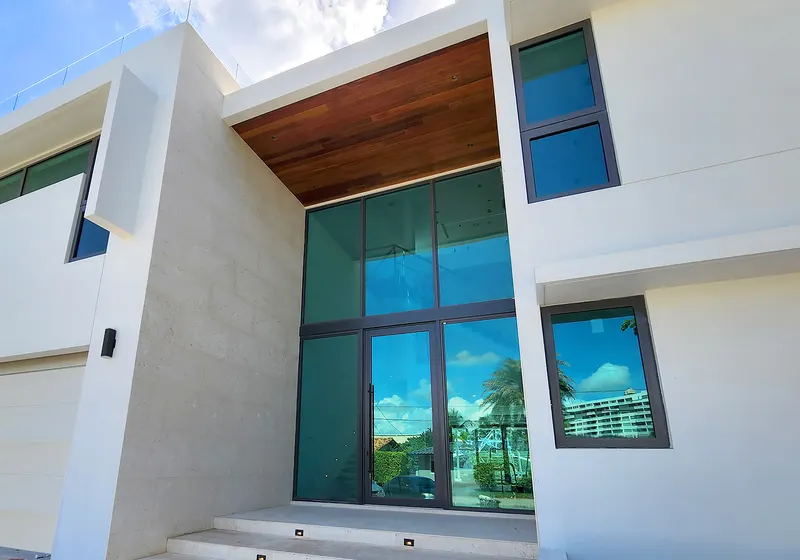

MG-4000

Pivot entry door

Oversized pivot entry door, up to 6 x 12 ft, with a hidden hydraulic pivot.

Best for: Statement front entries on covered or protected doorways, in lower-pressure locations.
Cost position: Premium
Largest size: Drawing SCG-07108-22: GL-1 glass 72 x 144 in. at +50/−55 psf; GL-2 glass 60 x 120 in. at ±70 psf; solid infill 72 x 144 in. at ±60 psf.
Impact rating: LMI (Florida product 41657.1).

Full specifications

Frame depth: Not published
Glass: 9/16 in. laminated heat-strengthened with 0.090 SGP (GL-1); 9/16 in. laminated with 0.100 Saflex HP (GL-2, higher rating, smaller size); Solid infill panel (approved option, ±60 psf; ask us about the infill material); Low-E available
Design pressure: Florida FL41657-R2: +50/−55 psf standard; GL-2 glass ±70 psf and infill ±60 psf, each within its own size limits. Not approved where water-infiltration resistance is required. The approval drawing sets the allowed pressure for each opening by size, configuration, glass, anchors and substrate.
Thermal: Not thermally broken. NFRC-simulated U-factor about 0.98–1.01.

All pivot doors we install Mr. Glass approvals

Mr. Glass thermally broken doors

Cost position

Ask us for a quote for your exact openings.

Relative to other Mr. Glass thermally broken doors, never a price. Your written estimate gives the price for your openings.

MG-3000 vs MG-3500 vs MG-4000 vs MG-2500T: which Mr. Glass door?

Attribute	MG-3000	MG-3500	MG-4000	MG-2500T
Door type	Outswing hinged; X, XX, sidelites	Outswing entry; X, XX	Pivot	Coplanar hinged, outswing or inswing
Max size	X 48 x 120 in.; XX 80-3/8 x 120 in. (per approval)	X 48 x 120 in.; XX 80-3/8 x 120 in. (per approval)	72 x 144 in. (GL-1 glass or infill); 60 x 120 in. with GL-2	60 x 120 in. frame
Glass / panel	7/16 in. laminated; 1 in. insulated laminated; 7/8 in. solid panel	7/16 in. laminated HS; 1 in. insulated laminated; 7/8 in. solid panel (per approval)	9/16 in. laminated (SGP or Saflex HP); solid infill	Solid insulated panel only (no glass in approval)
Design pressure (approval)	±80 psf	±80 psf	+50/−55 psf (±70 with GL-2 glass, smaller)	±70 psf
Locking	3-point or smart-lock prep; flush bolts	4-point multi-point (latch, deadbolt, head and sill shoot bolts); Siegenia smart lock option	Multi-point Siegenia; smart lock	Multi-point (CISA mechanical or KFV electric)
Thermal break	No	No	No	Yes (polyamide)
Water resistance	Approved where water resistance is required	Approved where water resistance is required	Not approved where water resistance is required	Water resistance up to +55 psf
Cost position	Budget-friendly	Mid-range	Premium	Ask us

Every Mr. Glass thermally broken door series

MG-2500T

Thermally broken coplanar door (outswing or inswing)

Thermally broken, flush (coplanar) solid-panel door with concealed hinges, outswing or inswing.

Best for: Modern entry or side doors where a flush look, concealed hinges, an inswing option or better thermal performance matters.
Largest size: 60 x 120 in. frame; leaf 56-1/8 x 117-5/8 in. at ±70 psf (drawing JA-1724-25-RA).
Impact rating: LMI and SMI (Florida product 47317.1)

Full specifications

Frame depth: 2.875 in. profile (2026 catalog)
Glass: Solid insulated panel leaf, no glass: 15-ga. (0.06 in.) aluminum sheet over 2 in. insulation and 3/8 in. treated wood board (drawing JA-1724-25-RA); Glass is not part of the approved door; approval FL47317 includes no glass type
Design pressure: Florida FL47317: ±70 psf. Water-infiltration resistance is limited to +55 psf. The approval drawing sets the allowed pressure for each opening by size, configuration, anchors and substrate.
Thermal: Thermally broken: aluminum 6063-T6 with glass-fiber-reinforced polyamide (PA66-GF25) thermal strips. No NFRC values published.

All thermally broken doors we install Mr. Glass approvals

Mr. Glass window walls

Cost position

MG-250Single-hung window wall (stacked modules)
Premium
The premium Mr. Glass single-hung: a 6 in. deep window-wall system built to take building movement, with 7/16 in. or thicker glass and modules up to 10 ft tall.
MG-6000Impact window wall / storefront
Ask us
Commercial systems are quoted by project.

Relative to other Mr. Glass window walls, never a price. Your written estimate gives the price for your openings.

Every Mr. Glass window wall series

MG-250

Single-hung window wall (stacked modules)

A deep, modular single-hung window wall for floor-to-ceiling and high-rise openings.

Best for: Tall openings and stacked window walls, condos and high-rise units where building movement must be accommodated.
Cost position: Premium
Largest size: LMI drawing 20-65F: 48 in. wide x 120 in. tall at +80/−80 psf, or 52 in. wide x 96 in. tall at +80/−115 psf. Modules join side by side.
Impact rating: LMI and SMI (separate Florida products 32415.2 LMI / 32415.1 SMI)

Full specifications

Frame depth: 6 in. system depth
Glass: 7/16 in. laminated (PVB or SentryGlas interlayer); 7/8 in. insulated laminated; 9/16 in. laminated (fixed lites, glass type C on the LMI drawing)
Design pressure: Florida FL32415-R4: +85/−130 psf (LMI and SMI). The approval drawing sets the allowed pressure for each opening by size, configuration, glass, anchors and substrate.
Thermal: Not thermally broken. No NFRC values published.

MG-6000

Impact window wall / storefront

Shop-glazed 5 in. window wall for mid- and high-rise.

Best for: Commercial and multi-family projects.
Largest size: 48 x 144 in. per unit, multiple units
Impact rating: LMI

Full specifications

Frame depth: 5 in. frame
Glass: 9/16 in. HS laminated; Insulated laminated (thickness per drawing W15-71)
Design pressure: Florida FL18411-R4: +100/−145 psf. The approval drawing sets the allowed pressure for each opening by size, configuration, glass, anchors and substrate.
Thermal: Not thermally broken.

All window walls we install Mr. Glass approvals

Mr. Glass other products

Cost position

Ask us for a quote for your exact openings.

Relative to other Mr. Glass other products, never a price. Your written estimate gives the price for your openings.

Every Mr. Glass specialty product series

MG-500

Commercial outswing door (single/double)

Commercial storefront door, also offered as the MG-500-10.

Best for: Commercial and multi-family projects.
Largest size: Single and double doors up to 144 in. tall with transom. Drawings 18-47F (MG-500) and 20-51F (MG-500-10) set the approved sizes.
Impact rating: LMI

Full specifications

Frame depth: 2-1/4 in. frame; 5 in. medium stile
Glass: 9/16 in. HS laminated; 1-1/8 in. insulated laminated
Design pressure: Florida FL27001-R3: +130/−130 psf for the MG-500 (27001.1) and ±114 psf for the MG-500-10 (27001.2). The older Miami-Dade NOA 18-0314.07 expired in 2023. The approval drawing sets the allowed pressure for each opening by size, configuration, glass, anchors and substrate.
Thermal: Not thermally broken.

MG-5000

Impact storefront

Recess-glazed impact storefront that mates with the MG-500 door.

Best for: Commercial and multi-family projects.
Largest size: Single jumbo units up to 84 x 180 in. Drawing 18-46F (FL27000-R3) sets the approved sizes.
Impact rating: LMI

Full specifications

Frame depth: 1-3/4 x 5 in. frame
Glass: 9/16 in. HS laminated
Design pressure: Florida FL27000-R3: ±130 psf. Miami-Dade NOA 18-0314.06 expired in 2023. The approval drawing sets the allowed pressure for each opening by size, configuration, glass, anchors and substrate.
Thermal: Not thermally broken.

MG-5500

Impact storefront/window wall, plus a separate outswing door

Storefront/window wall (FL47224) with a separately approved outswing door (FL47222).

Best for: Commercial and multi-family projects.
Largest size: Door: single 44 x 108 in., double 84-3/8 in. wide (drawing 24-97F)
Impact rating: LMI (window wall also SMI)

Full specifications

Frame depth: Not published
Glass: 7/16 in. and 9/16 in. laminated; 1-1/16 in. insulated laminated (window wall drawing)
Design pressure: Window wall FL47224: LMI ±75 psf, SMI ±100 psf. Door FL47222-R1: ±80 psf. The approval drawing sets the allowed pressure for each opening by size, configuration, glass, anchors and substrate.
Thermal: Not thermally broken.

MG-2000

Impact curtain wall (toggle-glazed)

Stick-built curtain wall with a four-sided silicone look.

Best for: Commercial and multi-family projects.
Largest size: Spans 17 ft 4 in. (heavy mullion) / 12 ft 6 in. (standard)
Impact rating: LMI and SMI

Full specifications

Frame depth: 2-3/4 in. mullion back
Glass: 9/16 in. HS laminated; 1-5/16 in. insulated laminated
Design pressure: Florida FL27401-R7: LMI +90/−100 psf; SMI +80/−110 psf. The approval drawing sets the allowed pressure for each opening by size, configuration, glass, anchors and substrate.
Thermal: Not thermally broken.

MG-7000

Impact stick curtain wall

Pressure-plate or two-side-silicone curtain wall.

Best for: Commercial and multi-family projects.
Largest size: Single span up to 196 in. tall
Impact rating: LMI

Full specifications

Frame depth: 2-3/4 x 7-13/16 in. frame
Glass: 9/16 in. HS laminated; 1-5/16 in. insulated laminated
Design pressure: Florida FL27101-R2: ±130 psf. Miami-Dade NOA 16-0808.10 expired in 2018. The approval drawing sets the allowed pressure for each opening by size, configuration, glass, anchors and substrate.
Thermal: Not thermally broken.

Mr. Glass approvals

.type-panel[hidden]{display:block} // Product picker: one panel open at a time; tapping the open product closes it. Links to #series-… open the right panel. const toggles = [...document.querySelectorAll<HTMLButtonElement>('[data-type-toggle]')]; const reduce = () => matchMedia('(prefers-reduced-motion: reduce)').matches; const panelOf = (b: Element) => document.getElementById(b.getAttribute('aria-controls') ?? ''); const setState = (b: HTMLButtonElement, on: boolean) => { b.setAttribute('aria-expanded', String(on)); const p = panelOf(b); if (p) p.hidden = !on; }; const open = (b: HTMLButtonElement, scroll = true) => { for (const o of toggles) if (o !== b && o.getAttribute('aria-expanded') === 'true') setState(o, false); setState(b, true); if (scroll) b.scrollIntoView({block: 'start', behavior: reduce() ? 'auto' : 'smooth'}); }; for (const b of toggles) b.addEventListener('click', () => b.getAttribute('aria-expanded') === 'true' ? setState(b, false) : open(b)); for (const c of document.querySelectorAll<HTMLButtonElement>('[data-type-close]')) c.addEventListener('click', () => { const b = toggles.find(t => t.getAttribute('aria-controls') === c.getAttribute('aria-controls')); if (!b) return; setState(b, false); b.focus({preventScroll: true}); b.scrollIntoView({block: 'center', behavior: reduce() ? 'auto' : 'smooth'}); }); const reveal = () => { const id = decodeURIComponent(location.hash.slice(1)); if (!id) return; const el = document.getElementById(id); const panel = el?.closest<HTMLElement>('[data-type-panel]'); if (!el || !panel) return; const b = toggles.find(t => t.getAttribute('aria-controls') === panel.id); if (b && b.getAttribute('aria-expanded') !== 'true') open(b, false); requestAnimationFrame(() => el.scrollIntoView({block: 'start'})); }; reveal(); addEventListener('hashchange', reveal);

Warranty and documents.

Specifications come from Mr. Glass' published catalogs and approval documents, checked October 3, 2026. Check any approval in the Florida Product Approval search or the Miami-Dade product approvals (NOA). Page updated October 3, 2026.

Other brands: GIG Windows and Eurocraft and ES Windows and EMC Windows and ECO and PGT and CWS

Before you get started

Questions about Mr. Glass.

Costs, timing, approvals, and the details worth asking about.

All your questions, answered

Is True Impact an authorized Mr. Glass dealer?

Yes. True Impact Windows & Doors is an authorized Mr. Glass dealer. We supply and install Mr. Glass impact windows and doors across Broward, Palm Beach and Miami-Dade counties. If you want to compare, we can also quote another brand.

What is the difference between the MG-200 and MG-350 SH?

What is the difference between the MG-300 and MG-350 HR?

What warranty comes with Mr. Glass products?

Mr. Glass publishes its own warranty terms, linked on this page. Coverage and conditions depend on the product and finish, and the documents for your project are included with your proposal.

Your home is worth it.

Take the first step toward a stronger home.

Impact windows. Impact doors. A plan built around you.

Get my free estimate

design pressurepsfDesign pressure (psf)The wind load a window or door is approved to resist, in pounds per square foot (psf). A rating like +80/−140 psf gives the inward push (+) and the outward suction (−).Each opening on your home has a required pressure based on wind speed, height and location. The product must meet or exceed it, so a higher rating covers more openings.

LMIlarge missilelarge-missileLarge missile impact (LMI)A test in which a 9 lb piece of 2x4 lumber is fired at the glass and frame, followed by thousands of wind-pressure cycles. The unit must stay closed and in one piece.The Florida Building Code requires large-missile protection for openings up to 30 ft above ground in the windborne-debris areas that include South Florida.

SMIsmall missilesmall-missileSmall missile impact (SMI)A test with small steel balls that simulate roof gravel, followed by wind-pressure cycles.Openings more than 30 ft above ground, such as high-rise condos, need small-missile protection. Some products are approved for both.

HVHZHigh-Velocity Hurricane ZoneHigh-Velocity Hurricane Zone (HVHZ)Miami-Dade and Broward counties, where the Florida Building Code applies its strictest testing and approval rules.A product used in the HVHZ must be approved for it. Some products are approved only for outside the HVHZ, so they cannot be used in Broward or Miami-Dade.

NOANOAsNotice of Acceptance (NOA)A product approval issued by Miami-Dade County after independent testing. It lists the approved sizes, glass, pressures and installation details, and it has an expiration date.Your permit needs a current approval for the exact product. An NOA is the standard proof in the HVHZ.

Florida Product ApprovalFlorida Product ApprovalsFlorida Product Approval (FL number)A statewide product approval from the Florida Building Commission, shown as a number like FL42522. Its installation drawings set the approved sizes, glass and anchors.Every window and door installed under a Florida permit needs an approval, either a Florida approval or a Miami-Dade NOA.

laminated glassLaminated glassTwo layers of glass bonded to a plastic interlayer. If the glass breaks, the pieces stay attached to the interlayer and the opening stays closed.Laminated glass is what makes an impact window impact-resistant. It also blocks most UV and reduces outside noise.

insulated laminatedinsulated glassInsulated laminated glassA laminated glass layer paired with a second pane, separated by a sealed space often filled with argon gas.It keeps heat out and the air conditioning in far better than laminated glass alone, and it is quieter. It costs more and makes the unit heavier.

PVBPVB interlayerPolyvinyl butyral, the standard flexible plastic layer inside laminated glass.PVB meets most residential needs at a lower cost. Higher pressures or larger sizes may call for SentryGlas.

SentryGlasSGPSentryGlas (SGP)A stiff, strong ionoplast interlayer made by Kuraray, used in place of PVB in laminated glass.It is much stiffer than PVB, so it often allows higher pressure ratings and larger sizes, and it stays clear at exposed edges. It usually costs more.

heat-strengthenedHeat-strengthened (HS) glassGlass heated and cooled under control to be about twice as strong as ordinary glass. It breaks into larger pieces than tempered glass.Approval drawings often call for HS glass inside laminated units to reach their pressure ratings.

temperedTempered glassGlass treated with heat to be about four times stronger than ordinary glass. When it breaks, it crumbles into small, blunt pieces.It is used as the outer pane of many insulated units and wherever safety glass is required.

Low-Elow-ELow-E coatingA microscopically thin metal coating on the glass that reflects heat while letting light through.In South Florida it cuts the sun’s heat coming in, lowering cooling costs and protecting floors and furniture from fading.

U-factorU-factorsU-valueU-valuesU-factorHow much heat passes through the whole window. Lower numbers mean better insulation.A lower U-factor keeps cooled air in, which matters most with insulated glass.

SHGCSolar Heat Gain Coefficient (SHGC)The share of the sun’s heat that passes through the window, from 0 to 1. Lower numbers let in less heat.In Florida’s climate, SHGC is often the energy number that matters most for comfort and cooling costs.

VLTVisible light transmittance (VLT)The share of visible daylight that passes through the glass. Higher numbers mean brighter rooms.It shows the trade-off between a darker, cooler tint and natural light.

NFRCNFRCThe National Fenestration Rating Council, an independent organization that certifies window energy ratings such as U-factor and SHGC.NFRC-certified numbers are tested the same way for every brand, so they can be compared fairly.

thermally brokenthermal breakthermal breaksThermally broken frameAn aluminum frame split by an insulating strip so heat cannot travel straight through the metal.Aluminum conducts heat well. A thermal break keeps the inside of the frame cooler and improves energy performance.

KynarKynar (PVDF) finishA high-performance fluoropolymer paint based on Kynar 500 PVDF resin. It is the classic finish that meets AAMA 2605.It resists fading, chalking and salt air best, which is why manufacturers recommend it near the coast.

AAMA 2605AAMA 2605The highest industry standard for painted aluminum, tested for 10 years of South Florida sun exposure.It is the best choice for strong sun and coastal homes, and some warranties require it near salt water.

AAMA 2604AAMA 2604A mid-level industry standard for painted aluminum, tested for 5 years of South Florida exposure. It is the standard powder coat on many impact windows.It performs well inland. Near the coast, a 2605 finish lasts longer.

anodizedanodizeAnodized finishA finish that hardens and colors the surface of the aluminum itself instead of painting it.It shows the metal’s natural look. Its warranty is often shorter than that of paint finishes.

mullionmullionsMullionA structural bar that joins two or more windows or doors into one larger opening.Mullions carry wind load too, so they need their own approval and anchoring.

egressEgressA window opening large enough for a person to escape through in an emergency.Building codes require an egress window in bedrooms, so the style and size you choose matter there.

sidelitesidelitesSideliteA narrow fixed glass panel beside a door.It adds light to an entry and must be approved together with the door.

transomtransomsTransomA fixed glass panel above a door or window.It adds height and light, and it must be approved as part of the assembly.

frame depthFrame depthHow thick the frame is from inside to outside, in inches.Deeper frames are usually stronger and reach larger sizes or higher ratings. They must also fit your wall opening.

argonArgon gasA safe, invisible gas sealed between the panes of insulated glass.It slows heat transfer better than air, improving insulation.

XOXXO/OXXO, OX and XOXCodes for sliding layouts seen from outside: X is a panel that slides and O is a fixed panel.The layout decides which side opens, which helps you plan furniture and walkways.

Tap again for the full glossary.

Mr. Glass impact windows and doors.

The Mr. Glass lines explained.

MG-350 Windows Series

Residential Impact Windows

Sliding, French and Entry Doors

Commercial Impact Systems

Mr. Glass product pictures.

Compare Mr. Glass by product.

Mr. Glass single-hung windows

Cost position

MG-200 vs MG-350 SH: which Mr. Glass single-hung?

Every Mr. Glass single-hung series

Single-hung window

Single-hung window

Mr. Glass sliding windows

Cost position

MG-300 vs MG-350 HR: which Mr. Glass slider?

Every Mr. Glass sliding window series

Horizontal roller (slider) window

Horizontal roller (slider) window

Mr. Glass picture windows

Cost position

MG-350 PW vs MG-400 vs MG-450: which Mr. Glass fixed window?

Every Mr. Glass picture window series

Fixed (picture) window

Fixed (picture) window

Fixed (picture) window / louver

Mr. Glass casement windows

Cost position

Every Mr. Glass casement series

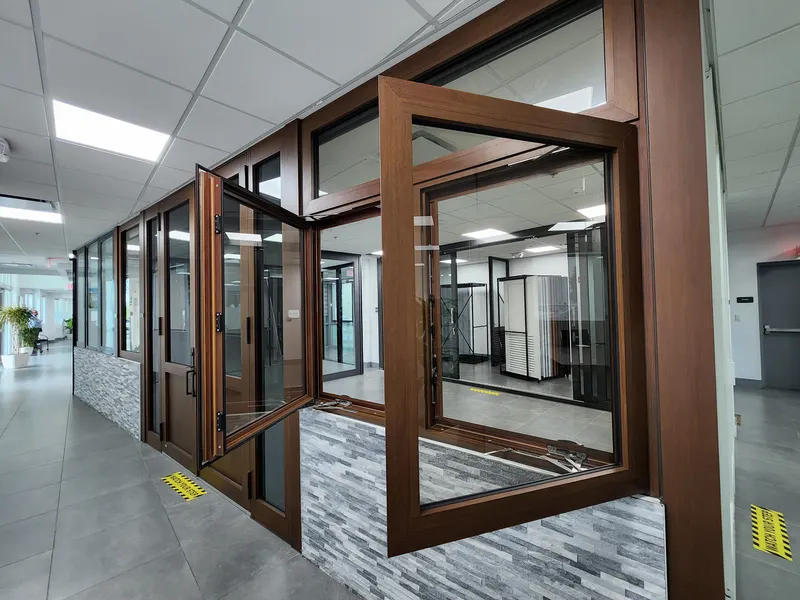

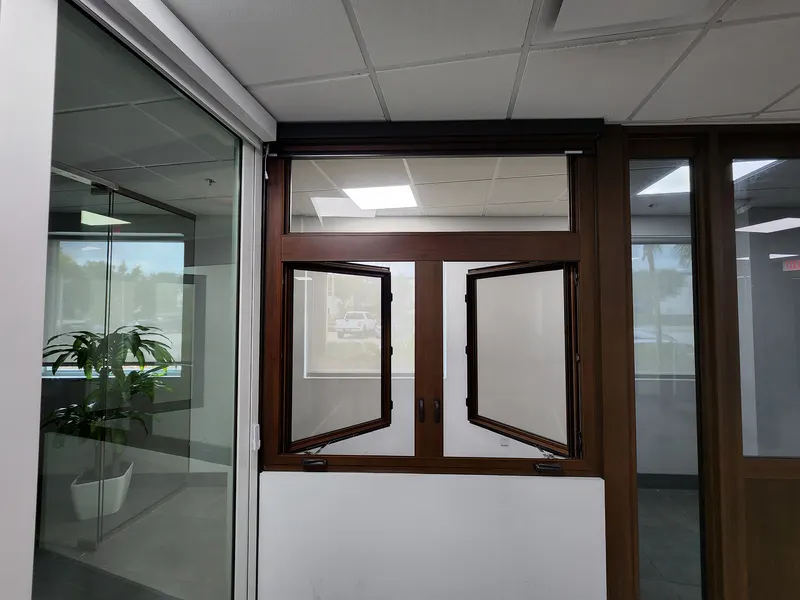

Casement and awning window

Mr. Glass awning windows

Cost position

Every Mr. Glass awning series

Casement and awning window

Mr. Glass sliding glass doors

Cost position

MG-1500 vs MG-1000 vs MG-1100: which Mr. Glass sliding door?

Every Mr. Glass sliding glass door series

Sliding glass door (2-track)

Sliding glass door (2-track)

Mr. Glass multitrack sliding doors

Cost position

MG-1500 vs MG-1000 vs MG-1100: which Mr. Glass sliding door?

Every Mr. Glass multitrack door series

Multitrack sliding glass door (3-track)

Mr. Glass entry and French doors

Cost position

MG-3000 vs MG-3500 vs MG-4000 vs MG-2500T: which Mr. Glass door?

Every Mr. Glass entry & french door series

Outswing hinged (French) door

Outswing entry door

Mr. Glass pivot doors

Cost position

MG-3000 vs MG-3500 vs MG-4000 vs MG-2500T: which Mr. Glass door?

Every Mr. Glass pivot door series

Pivot entry door

Mr. Glass thermally broken doors

Cost position

MG-3000 vs MG-3500 vs MG-4000 vs MG-2500T: which Mr. Glass door?

Every Mr. Glass thermally broken door series

Thermally broken coplanar door (outswing or inswing)

Mr. Glass window walls

Cost position

Every Mr. Glass window wall series

Single-hung window wall (stacked modules)

Impact window wall / storefront

Mr. Glass mullions

Cost position

Every Mr. Glass mullions series

Mullion (joins windows and doors)

Mr. Glass other products

Cost position

Every Mr. Glass specialty product series

Commercial outswing door (single/double)

Impact storefront

Impact storefront/window wall, plus a separate outswing door

Impact curtain wall (toggle-glazed)

Impact stick curtain wall

Warranty and documents.
